Our Domestic Water System

A 10,000 gallon underground reservoir and pump-house located in the pear orchard served the community's water needs for over thirty years. However, subdivision activity in recent years increased demand for new connections, outstripping our underground storage capacity. (The capacity and characteristics of our domestic system were evaluated in an engineering report completed ca. 1980.)

In 2008 the Association was red-flagged by Dept of Health for exceeding arsenic limits that had been lowered by the federal Environmental Protection Agency from 50 parts per billion (ppb) to 10 ppb. (Our levels were approximately 17 ppb.) We signed a Bilateral Compliance Agreement (BCA) committing us to remedy the arsenic violations.

With the help of the Office of Drinking Water District Engineer we were able to secure a 1%, 20-year Drinking Water State Revolving Fund (DWSRF) loan that would cover most of the costs to achieve compliance with lowered arsenic limits, double our storage capacity, add meters at every household connection, and replace aging pumps and motors. A construction contract was signed in Spring 2011 and the work completed before first frost in the Fall. Total cost was $161,680 of which $126,829 was covered by our DWSRF loan; the remainder - $34,850 - was paid from retained earnings and our Capital Improvement Fund.

System Operation

A 7.5 HP well-pump controlled by a Variable Frequency Drive (VFD) pushes water up the hill from the well to fill the two 10,000 gallon above-ground polyethylene storage tanks located adjacent to the domestic pump-house in the pear orchard off Mundinger Lane. The well-water passes through an arsenic adsorption unit - two large fiberglass tanks containing adsorption media - before entering the storage tanks. Treated water is drawn from the tanks and pressurized to 65 psi by a pair of turbine booster pumps. From the pump-house the water enters the mainline distribution system serving 23 active household connections.

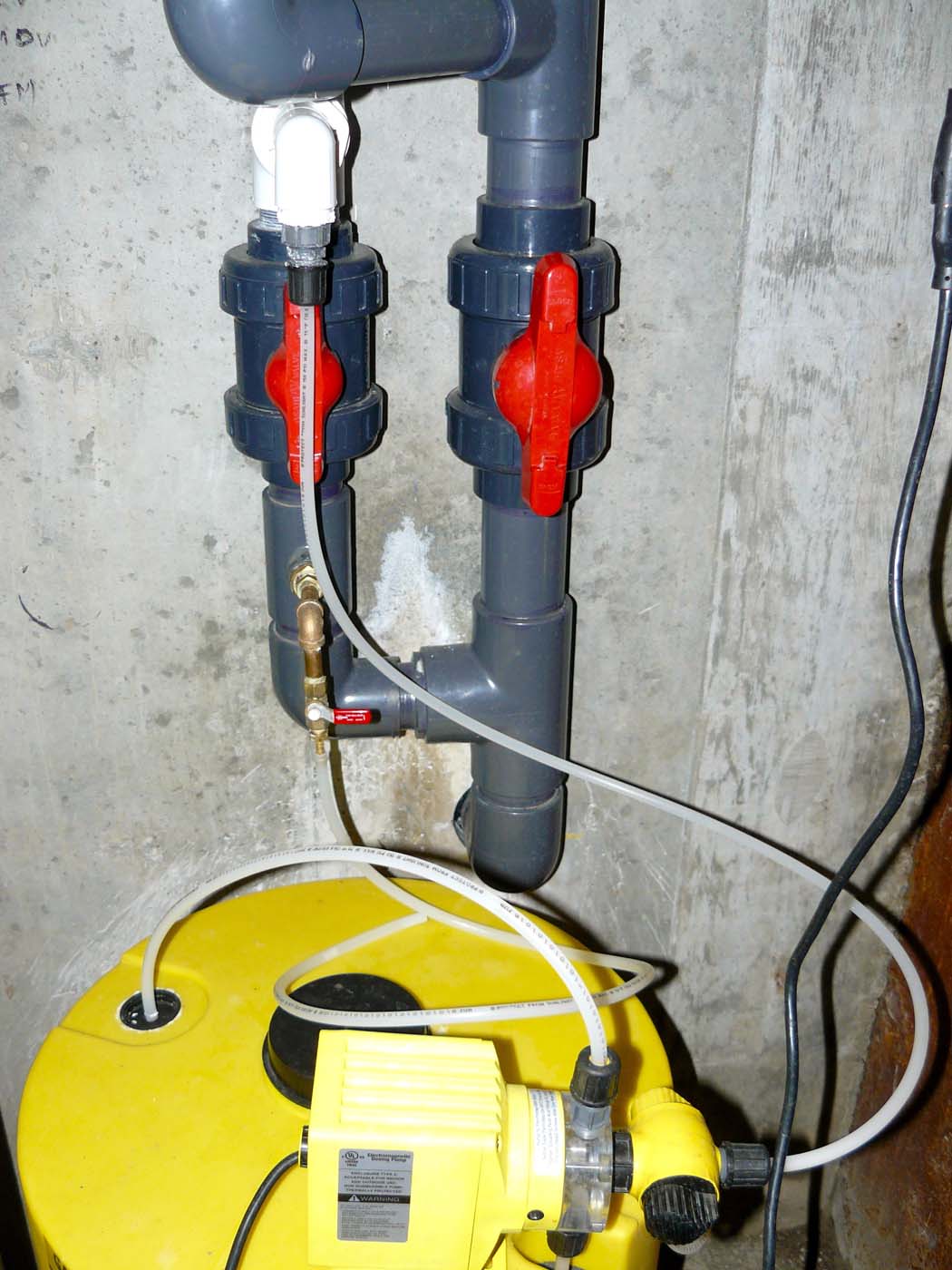

Starting in the Fall of 2012 a chlorination and blending system came on-line. Chlorine is injected into the incoming well water to improve the capacity of the arsenic adsorption media to remove arsenic. Most of the chlorine is consumed in a chemical process that changes one form of arsenic into another form which is more easily adsorbed on to the media. A small residual amount of chlorine (less than 0.5 parts per million) remains in the water and provides some protection against bacterial contamination.

A bypass line allows us to blend raw well water with treated water in order to extend the life of the media while maintaining arsenic levels below the 10 parts per billion (ppb) EPA drinking water standard.

Once every thirty days at 2:00 a.m. the arsenic adsorption unit automatically back-flushes accumulated sediments into the de-commissioned underground storage tank abutting the lower level of the pump-house. At roughly five to seven year intervals the media in the arsenic units must be replaced to maintain effective removal of arsenic. The first media change was performed by our system operator assisted by volunteeers in August 2019, eight years after the arsenic remediation installation was commissioned.

Monitoring Water Quality

Alpine Environmental takes treated water samples monthly and untreated water samples every three years for lab testing to monitor arsenic levels. In addition, Vista Vu has a test kit it can use to check arsenic levels well before official lab test results become available. Adjustments are then made to the blending bypass to maintain less than 10 ppb of arsenic in the blended water you drink.

Coliform test samples are taken from taps at several residences around the subdivision. The presence of coliform bacteria is an indicator that other pathogens may be present in the domestic water supply and requires shock-chlorination of the entire distribution system and notification of the Association membership.

An annual Consumer Confidence Report is sent to the Vista Vu Water Users Association membership and may be downloaded here.

Metering Use

State law required that we install a source meter and a meter at each household connection by January, 2017. As a condition for approving our DWSRF loan, we included meters in our 2011 system upgrade. We read the meters monthly for billing purposes, leak detection and water conservation monitoring as part of our required Water Use Efficiency Report.

Daily Inspections

To detect major leaks, spills, and electrical or mechanical problems, we inspect the domestic pump house daily using volunteers in the community. A simple checklist takes about five minutes to complete, all items performed from the upper level of the pump house.
